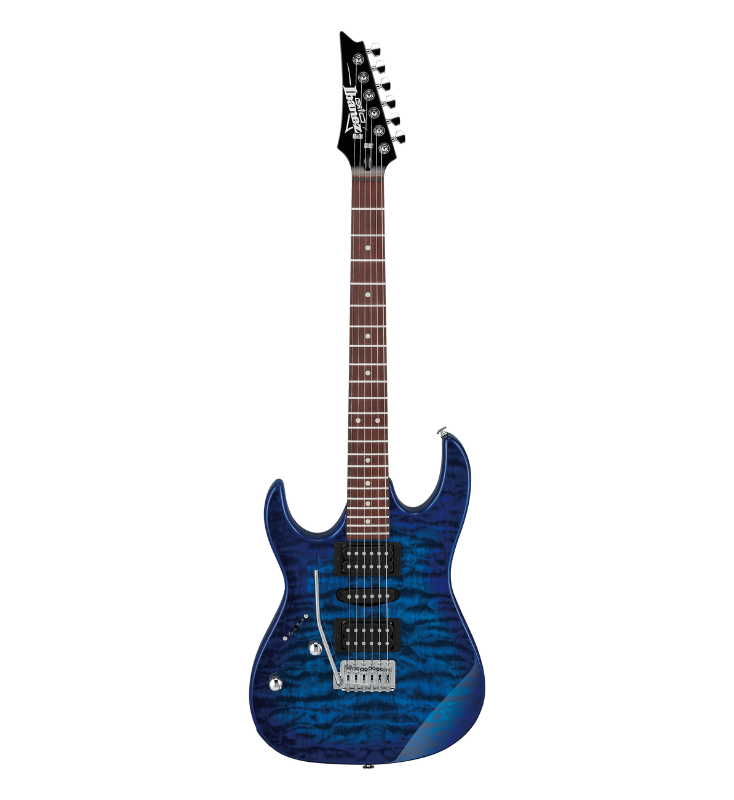

กีต้าร์ไฟฟ้ามือซ้าย Ibanez GRX70QAL-TBB

SPECS

• neck type
• GRXMaple neck
• top/back/body

  Quilted Maple Art Grain (Basswood) topPoplar body

• fretboard

  Jatoba fretboardWhite dot inlay

• fret

  Medium frets

• number of frets

  22

• bridge

  T106 bridge

• string space

  10.5mm

• neck pickup

  Infinity R (H) neck pickupPassive/Ceramic

• middle pickup

  Infinity RS (S) middle pickupPassive/Ceramic

• bridge pickup

  Infinity R (H) bridge pickupPassive/Ceramic

• factory tuning

  1E,2B,3G,4D,5A,6E

• string gauge

  .009/.011/.016/.024/.032/.042

• hardware color

  Chrome

NECK DIMENSIONS

• • Scale :

    648mm/25.5″

  • a : Width

    42mm at NUT

  • b : Width

    57mm at 22F

  • c : Thickness

    19.5mm at 1F

  • d : Thickness

    21.5mm at 12F

  • Radius :

    305mmR

SWITCHING SYSTEM

GRX70QAL’s Switching system diagram

CONTROLS

GRX70QAL’s control diagram

Features

Maple neck

Maple neck

The Maple neck provides stability and bright tonal character.

T106 tremolo bridge

T106 tremolo bridge

The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.

Mono-unit output jack

Mono-unit output jack

The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

Infinity R H-H pickups

Infinity R H-H pickups

Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

Jatoba Fretboard

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
